Large Language Model

This example is for the M5Stack Module LLM. It requires the M5Stack Module LLM to be connected to the M5Stack CoreS3, Core2 or Basic.

Before using, make sure you have the latest software packages installed

Tip

Need help getting started? View the tutorial.

apt install llm-llm

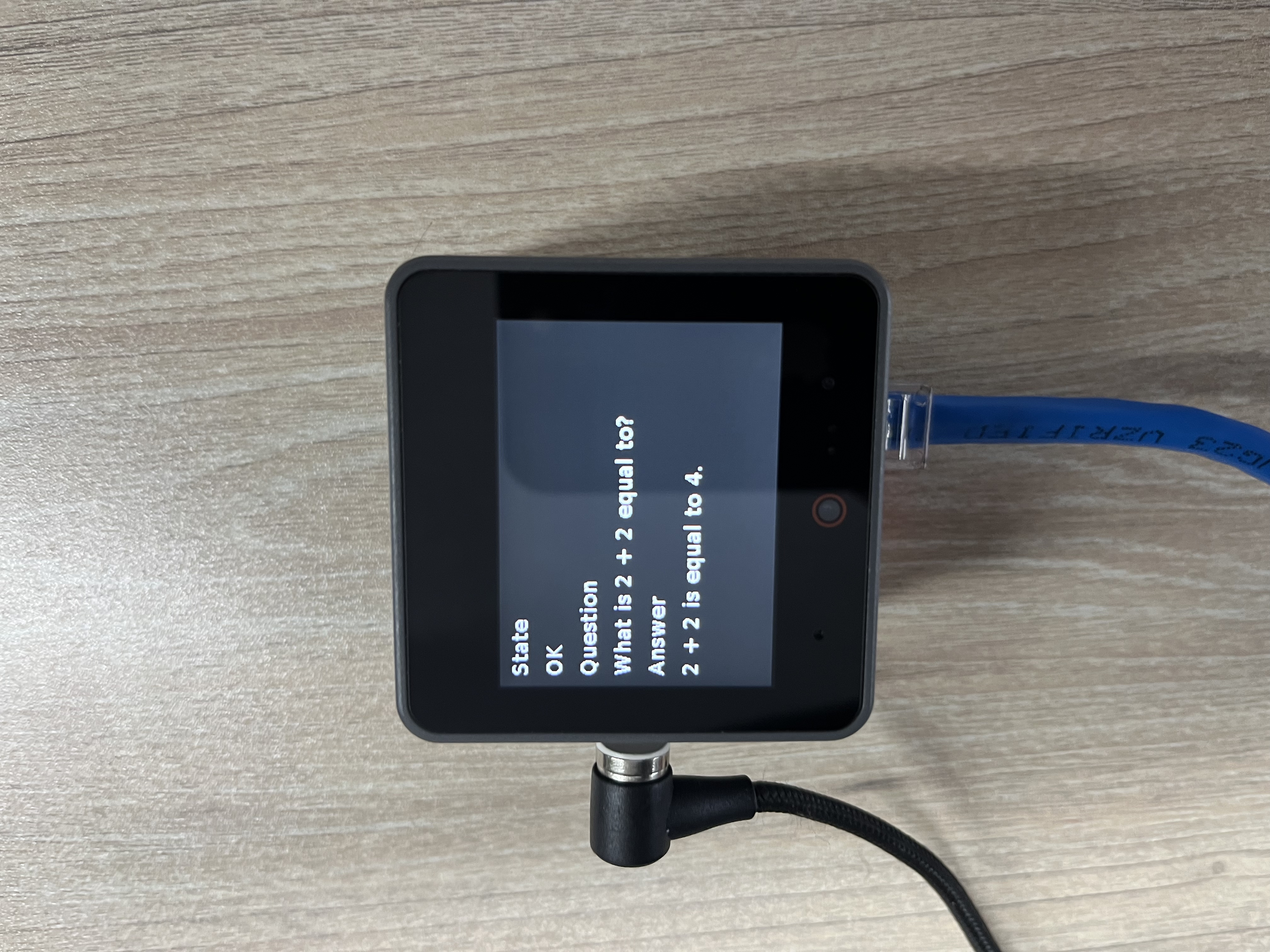

UIFLOW2 Example

Before using, make sure you have the latest model packages installed

apt install llm-model-qwen2.5-0.5b-prefill-20e

Tip

For more information about this model see the details.

Click here to jump to llm demo

Micropython Example

Before using, make sure you have the latest model packages installed

apt install llm-model-qwen2.5-0.5b-prefill-20e

Tip

For more information about this model see the details.

import os, sys, io
import M5
from M5 import *
from module import LlmModule
import time



label0 = None
label1 = None
label2 = None
label3 = None
label4 = None
label5 = None
llm_0 = None


adding_number = None
is_answer_finish = None
question = None
answer = None
k = None

# Describe this function...
def handle_ask_question():
    global adding_number, is_answer_finish, question, answer, k, label0, label1, label2, label3, label4, label5, llm_0
    adding_number = adding_number + 1
    question = 'What is x + x equal to?'.replace('x', str(adding_number))
    label3.setText(str(question))
    llm_0.llm_inference(llm_0.get_latest_llm_work_id(), question, 'llm_inference')

# Describe this function...
def handle_ModuleLLM_response_msg():
    global adding_number, is_answer_finish, question, answer, k, label0, label1, label2, label3, label4, label5, llm_0
    is_answer_finish = False
    answer = ''
    while not is_answer_finish:
        llm_0.update()
        for k in (llm_0.get_response_msg_list()):
            if (k['work_id']) == (llm_0.get_latest_llm_work_id()):
                answer = (str(answer) + str(((k['data'])['delta'])))
                is_answer_finish = (k['data'])['finish']
        llm_0.clear_response_msg_list()
    label5.setText(str(answer))


def setup():
    global label0, label1, label2, label3, label4, label5, llm_0, adding_number, is_answer_finish, question, answer, k

    M5.begin()
    Widgets.fillScreen(0x222222)
    label0 = Widgets.Label("State", 10, 10, 1.0, 0xffffff, 0x222222, Widgets.FONTS.DejaVu18)
    label1 = Widgets.Label("~", 10, 40, 1.0, 0xffffff, 0x222222, Widgets.FONTS.DejaVu18)
    label2 = Widgets.Label("Question", 10, 70, 1.0, 0xffffff, 0x222222, Widgets.FONTS.DejaVu18)
    label3 = Widgets.Label("~", 10, 100, 1.0, 0xffffff, 0x222222, Widgets.FONTS.DejaVu18)
    label4 = Widgets.Label("Answer", 10, 130, 1.0, 0xffffff, 0x222222, Widgets.FONTS.DejaVu18)
    label5 = Widgets.Label("~", 10, 160, 1.0, 0xffffff, 0x222222, Widgets.FONTS.DejaVu18)

    llm_0 = LlmModule(2, tx=17, rx=18)
    label1.setText(str('Wait ModuleLLM connection..'))
    while not (llm_0.check_connection()):
        time.sleep(1)
    label1.setText(str('Reset ModuleLLM..'))
    llm_0.sys_reset(True)
    label1.setText(str('Setup LLM module..'))
    llm_0.llm_setup(prompt='You are a helpful assistant.', model='qwen2.5-0.5B-prefill-20e', enoutput=True, enkws='', max_token_len=127, request_id='llm_setup')
    adding_number = 0
    label1.setText(str('OK'))


def loop():
    global label0, label1, label2, label3, label4, label5, llm_0, adding_number, is_answer_finish, question, answer, k
    handle_ask_question()
    handle_ModuleLLM_response_msg()
    time.sleep(1)


if __name__ == '__main__':
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg
            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")
